Longitudinal Shear Machine Group

Longitudinal Shear Machine

General Description

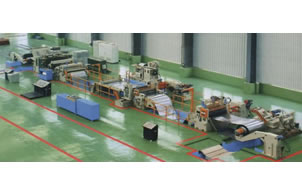

The longitudinal-cut machine unit is composed of the hydraulic open coil, hydraulic shovel leader, straightening, cut, damp, wrap up and other major components. The main function is to roll the wide steel strip along the horizontal direction into a narrow strip of a certain size volumes for the future ingort production of the processes like the rolling, the tube welding, the cold-formed shape and the punch.

Type Coil Thickness
(mm)
Coil Width (mm) No. of.
Slitting
Tolerance
(mm)
Speed
(m/min)
Weight of Roll (Ton)
ZJS-0.5×1300 0.15-0.5 500-1300 10-15 ±0.05 50-120 15
ZJS-1.5×1300 0.25-1.5 500-1300 10-15 ±0.05 50-120 15
ZJS-2×1300 0.25-2 500-1300 10-15 ±0.05 50-120 15
ZJS-2×1300 0.25-2 500-1600 10-15 ±0.05 50-160 15
ZJS-2×2000 0.25-2 900-2000 8-12 ±0.1 50-160 20
ZJS-3×1600 0.25-3 100-1500 8-12 ±0.1 50-120 20
ZJS-4×1600 0.5-4 1500 6-10 ±0.1 40-100 20

By absorbing merits of similar longitudinal shear machine group and using new technology from abroad and China domestic, Shanghai Salei is the professional producer to develop and manufacture the family longitudinal shear machine group products including series down and curving pipe forming machine, T-beam welding production line, bridge-face U-stiffer welding production line, and steel structure cold roll forming production line as well as CNC waterjet cutting machine. With years development, Salei longitudinal shear machine group have been spread over Saudi Arabia, Russia, Middle Asian, Southeast Asian, Australia, Europe, South American, North American, etc. Look forward to establishing mutually beneficial cooperation.
